Transparent Doors

Transparent Doors

IP Enclosures provide a range of Transparent Glazed Doors that can be easily fitted to our range of electrical enclosures. Transparent Doors are provided as a standard accessory. Simply remove the existing door and replace with a transparent door.

Features and Specifications

Protection: Complies with IP66
Standard: AS60529, RoHS, CE

WINDOORS – Powder-Coated Steel

Material:

– Enclosure Door: 1.5mm galvanised steel sheet
– Enclosure Seal: Polyurethane
– Windows: 4mm Transparent tempered glass

Door:

The surface mounted door is 1.5mm galvanised steel sheet. It incorporates concealed removable hinges with captive pins. Doors are also designed for a 110° opening. The is provided with recessed windows manufactured using 4mm transparent tempered glass with seal.

Seal:

A high quality full perimeter seal provides excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).

Lock:

Chrome 5mm Double Bit Quarter Turn Lock. A full range of locking solutions are available upon request.

Surface Treatment:

UL approved epoxy polyester powder coated with a textured finish. 80-120 micron average thickness. The standard electrical enclosure colour is RAL7035. A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.

Electrical Enclosure Door with Window
Part NumberEnclosure Size (mm)Lock
SKUH x WQuantity
IP-4030WINDOOR400 x 300 IP66 Enclosure Door with Window1
IP-4040WINDOOR400 x 400 IP66 Enclosure Door with Window1
IP-5030WINDOOR500 x 300 IP66 Enclosure Door with Window1
IP-5040WINDOOR500 x 400 IP66 Enclosure Door with Window1
IP-5050WINDOOR500 x 500 IP66 Enclosure Door with Window1
IP-6040WINDOOR600 x 400 IP66 Enclosure Door with Window2
IP-6060WINDOOR600 x 600 IP66 Enclosure Door with Window2
IP-7050WINDOOR700 x 500 IP66 Enclosure Door with Window2
IP-8040WINDOOR800 x 400 IP66 Enclosure Door with Window2
IP-8060WINDOOR800 x 600 IP66 Enclosure Door with Window2
IP-8080WINDOOR800 x 800 IP66 Enclosure Door with Window2
IP-10060WINDOOR1000 x 600 IP66 Enclosure Door with Window2
IP-10080WINDOOR1000 x 800 IP66 Enclosure Door with Window2
IP-12060WINDOOR1200 x 600 IP66 Enclosure Door with Window2
IP-12080WINDOOR1200 x 800 IP66 Enclosure Door with Window2

WINDOORS – Grade 316 Stainless Steel

Material:

– Enclosure Door: 1.5mm Grade 316/316L Stainless Steel
– Enclosure Seal: Polyurethane
– Windows: 4mm Transparent tempered glass

Door:

The surface mounted door is 1.5mm Grade 316/316L Stainless Steel. It incorporates concealed removable hinges with captive pins. Doors are also designed for a 110° opening. The is provided with recessed windows manufactured using 4mm transparent tempered glass with seal.

Seal:

A high quality full perimeter seal provides excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).

Lock:

Grade 316 Stainless Steel 8mm Square Drive Quarter Turn Lock. A full range of locking solutions are available upon request.

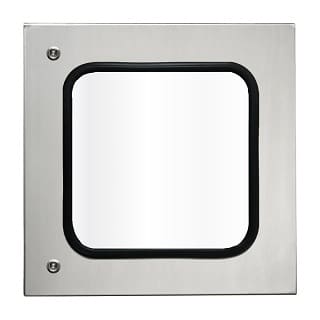

Stainless Steel Door with Window
Part NumberEnclosure Size (mm)Lock
SKUH x WQuantity
IP-SS4030WINDOOR400 x 300 IP66 316ss Enclosure Door with Window1
IP-SS4040WINDOOR400 x 400 IP66 316ss Enclosure Door with Window1
IP-SS5030WINDOOR500 x 300 IP66 316ss Enclosure Door with Window1
IP-SS5040WINDOOR500 x 400 IP66 316ss Enclosure Door with Window1
IP-SS5050WINDOOR500 x 500 IP66 316ss Enclosure Door with Window1
IP-SS6040WINDOOR600 x 400 IP66 316ss Enclosure Door with Window2
IP-SS6060WINDOOR600 x 600 IP66 316ss Enclosure Door with Window2
IP-SS7050WINDOOR700 x 500 IP66 316ss Enclosure Door with Window2
IP-SS8040WINDOOR800 x 400 IP66 316ss Enclosure Door with Window2
IP-SS8060WINDOOR800 x 600 IP66 316ss Enclosure Door with Window2
IP-SS8080WINDOOR800 x 800 IP66 316ss Enclosure Door with Window2
IP-SS10060WINDOOR1000 x 600 IP66 316ss Enclosure Door with Window2
IP-SS10080WINDOOR1000 x 800 IP66 316ss Enclosure Door with Window2
IP-SS12060WINDOOR1200 x 600 IP66 316ss Enclosure Door with Window2
IP-SS12080WINDOOR1200 x 800 IP66 316ss Enclosure Door with Window2
