Kiosks

Kiosks (also known in the industry as Montrose-style boxes) are versatile and durable solutions for industrial applications. Combining the IP Enclosures S1 Electrical Enclosure engineering with Montrose design specifications, they feature an integrated base and overhanging roof, providing secure installation and IP66 weatherproof protection against harsh environments and applications.

Built from robust materials, Montrose-style boxes are designed to withstand harsh environments while offering flexibility for various applications. Their modular design and practical features make them ideal for housing electrical equipment, control panels, or communication systems in industrial settings.

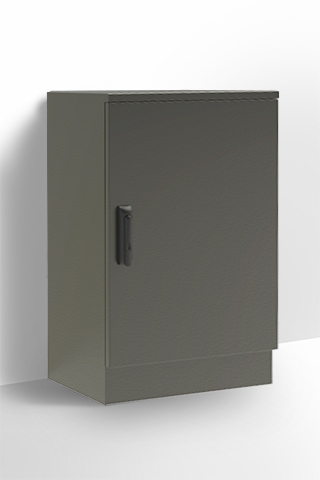

IP66 Kiosks (Montrose-style boxes)

Features & Specifications

Protection: IP66 IK10 (NEMA 4)

Standards (& Conformities): IEC/EN 60529, IEC/EN 62208, RoHS, CE, UKCA

Material:

– Body: 1.5mm galvanised steel, marine grade aluminium or stainless steel
– Door: 1.5mm galvanised steel, marine grade aluminium or stainless steel
– Gland Plate: 1.5mm steel sheet
– Device Mounting Plate: 1.5mm galvanised steel sheet
– Seal: Polyurethane

Body:

The robust monoblock body is fabricated using 1.5mm galvanised steel, marine grade aluminium or stainless steel sheet. Flat face sealing surfaces are provided to increase seal life. Integral device plate mounts and M6 earth stud is provided.

Door:

The robust surface mounted door is fabricated using 1.5mm galvanised steel, marine grade aluminium or stainless steel sheet and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains integral cable management rail studs, M6 earth stud.

Seals:

A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).

Locks:

3 point lock with Pad lockable swing handle.

Device Mounting Plate:

The device mounting plate is fabricated using 1.5mm galvanised steel sheet, pressed to provide additional strength and supplied pre-fitted into enclosure as standard.

Gland Plate:

Gland plates are provided with gaskets and fasteners

Surface Treatment:

UL approved epoxy polyester powder coated with a smooth finish. 80-120 micron average thickness.

Colour:

Karaka Green.

Certificates:

IEC 60529 Degrees of protection provided by enclosures: Certificate AB-0386-T 1902.14 02/00
IEC/EN 62208 Empty Enclosures for low-voltage switchgear and controlgear assemblies: Certificate 0366932-TSE-01/01
CE Certificate of Compliance: Certificate SZL-21 MA 13338-1
UKCA Certificate of Compliance: Certificate SZU-22MA19560-1

Products are manufactured to Quality, Safety and Environmental standards.
