Heavy Duty Sloping Roof Electrical Enclosures

Heavy Duty Sloping Roof Electrical Enclosures are designed to house a variety of electrical switch and control equipment while preventing build-up of dust, debris and waste material in extreme environments.

Heavy Duty Sloping Roof Electrical Enclosures

Features & Specifications

Protection: Complies with IP66 IK10, NEMA 4 (Independent accredited test laboratory).

Standard: IEC 62208, IEC/EN/AS60529, (UL508A Optional), RoHS, CE

Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switch gear and control gear assemblies’.

Material:

– Body: 2.0 Galvanised Steel Sheet
– Door: 2.0 Galvanised Steel Sheet
– Device Mounting Plate: Galvanised steel sheet
– Gland Plate: 2.0 Galvanised steel sheet
– Seal: Polyurethane

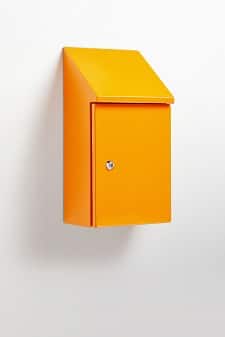

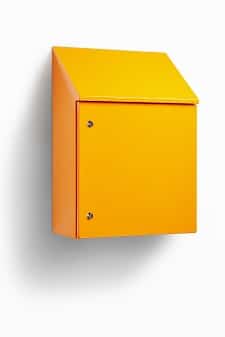

Enclosure Body:

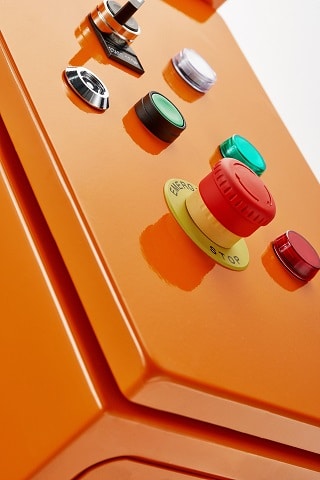

The robust monoblock body with sloping roof is fabricated using 2.0mm galvanised steel sheet. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounting. The roof consists of a 38° sloped roof design that protrudes past pushbuttons for the mining industry. Integral device plate mounts and M6 earth stud is provided.

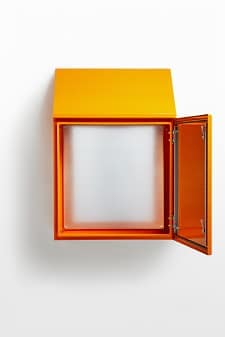

Enclosure Door:

The robust surface mounted door is fabricated using 2.0mm galvanised steel sheet and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal.

Enclosure Seal:

A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).

Enclosure Lock:

Chrome 5mm double bit insert quarter turn lock with key. A full range of locking solutions are available upon request.

Device Mounting Plate:

The device mounting plate is galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.

Gland Plate:

Gland plates are incorporated into the bottom face of the enclosure for cable management. They are provided with gaskets and fasteners. The size and quantity vary according to enclosure size. Standard brass gland plates and aluminium gland plates are available as optional accessories.

Surface Treatment:

UL approved epoxy polyester powder coated with a smooth finish. 80-120 micron average thickness.
